Professional Airbrush Ultimate Edition (0.35mm nozzle set with MAC valve + 0.5mm replacement nozzle set)

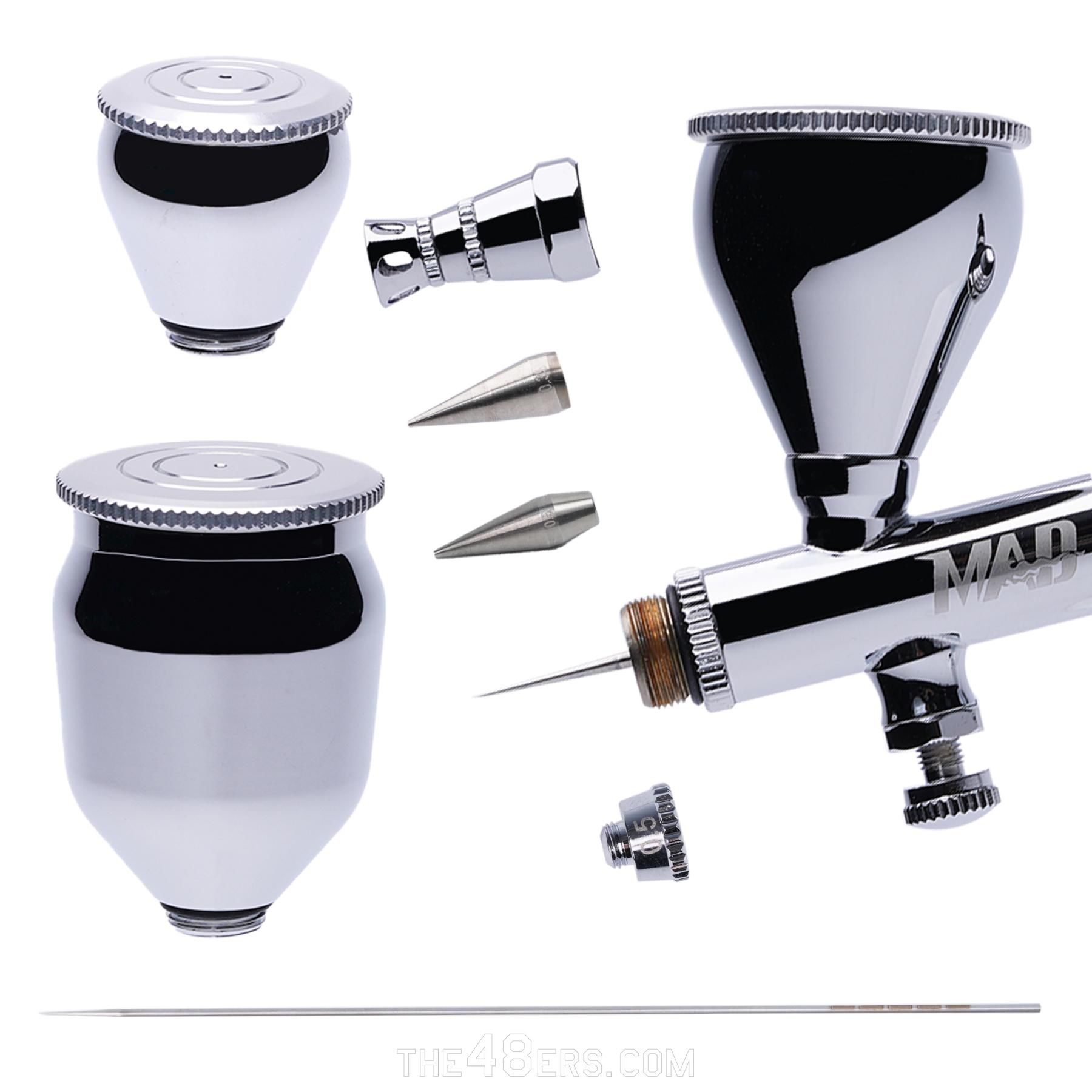

This JM-00 full version airbrush comes with a 17ml spray cup, a 3ml spray cup and a 0.5mm accessory bag.
Accessories Kit:
- 17ml spray cup: can hold a large amount of paint, suitable for large area spraying. Pay attention to the installation of the spray cup, make sure that there is an O ring at the seal, otherwise the paint will overflow.
- 17ml paint cup can hold more paint and is suitable for larger canvas. Please note the o-ring must be present when attaching the paint cup, otherwise, paint will leak through the threads.
- 3ml spray cup: It can hold a small amount of paint, suitable for small area color stacking, effectively save paint when recycling, and can be cleaned quickly. Pay attention to the installation of the spray cup, make sure that there is an O ring at the seal, otherwise the paint will overflow.
- 3ml paint cup holds only small volume of paint. It is suitable for stacking color on small surface area. It also minimizes wastage and reduces time for cleanup. Please note the o-ring must be present when attaching the paint cup, otherwise, paint will leak through the threads.
- 0.5mm Accessory Package: Spray primer, metallic paint, protective paint, or spray on a large area, you can choose to replace this accessory package.
- 0.5mm Accessories Kit is suitable for applying primers, metallic paints, protective top coats, or for working on a large canvas. Please install this accessories kit as needed.
Installation Precautions :

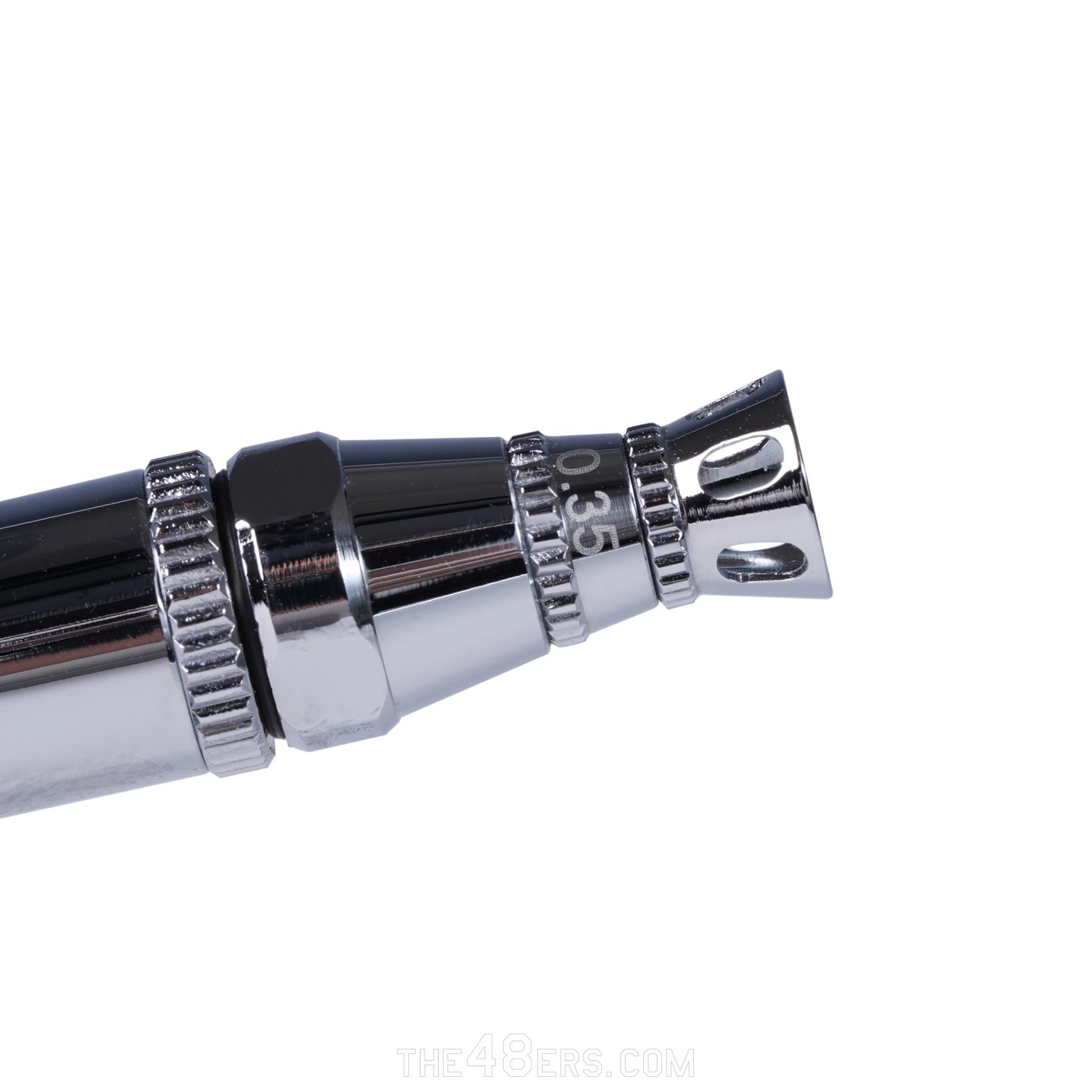

When replacing the accessory package, first exit the 0.35 needle (#10A), and remove the hole mandrel cover, nozzle cover 0.35, nozzle seat cover, and nozzle 0.35 (#1B, #2A, #3, #4A) in order.
When switching to the accessories kit, first remove the 0.35mm needle (#10A). In the following order, remove the needle cap, the 0.35mm nozzle cap, the head cap, and the 0.35mm nozzle (#1B, #2A, #3, #4A).
Install the nozzle 0.5, the nozzle seat cover, the nozzle cover 0.5, the hole mandrel cover (#4B, #3, #2B, #1B), and pay attention to the hole of the board machine (#14) when loading the 0.5 spray needle (#10B) to avoid the collision of the spray needle.
Next, install the 0.5mm nozzle, the head cap, 0.5mm nozzle cap, and the needle cap (#4B, #3, #2B, #1B), then insert the 0.5mm needle (#10B). Pay attention when threading the needle through the Lever (#14) to avoid any physical damage to the needle.
